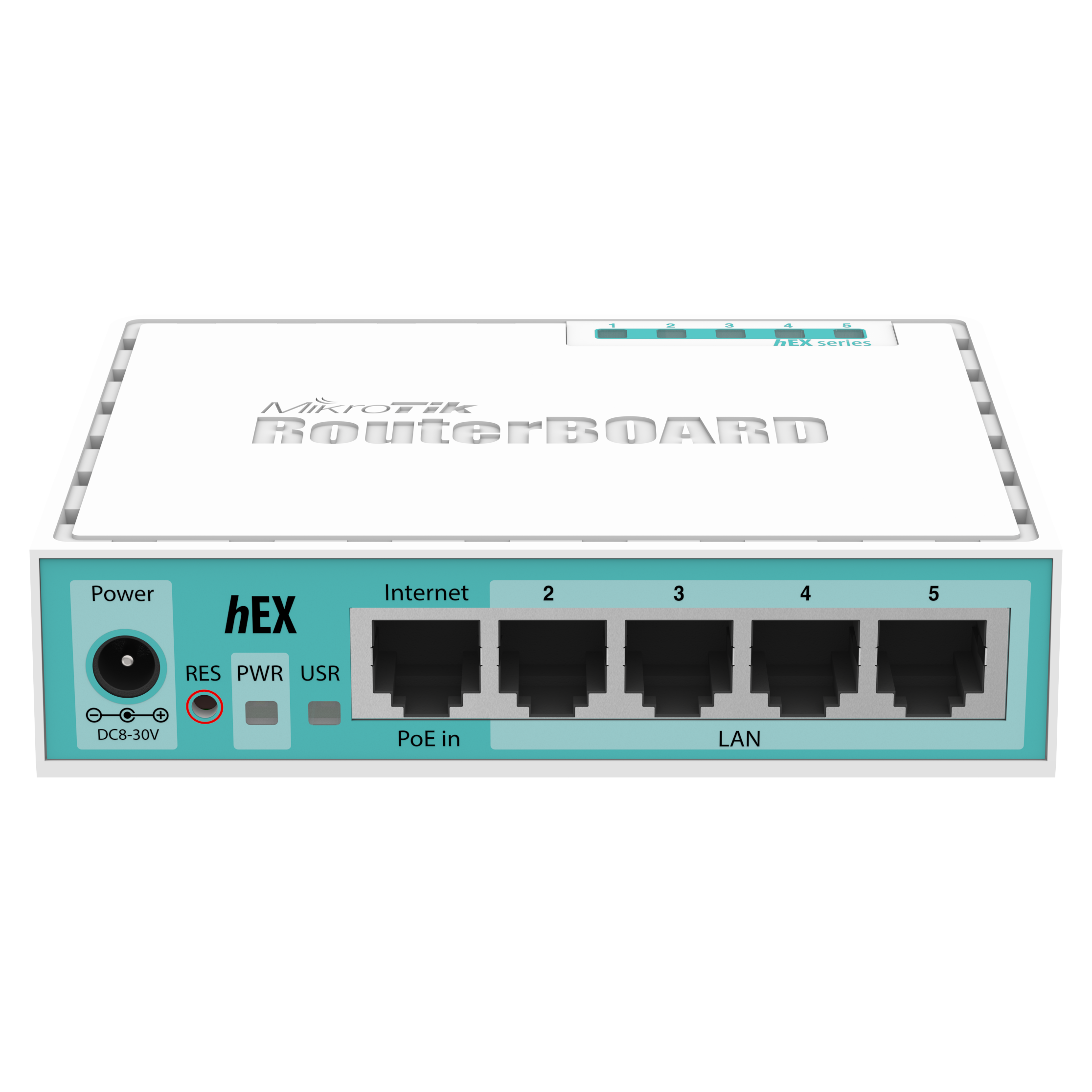

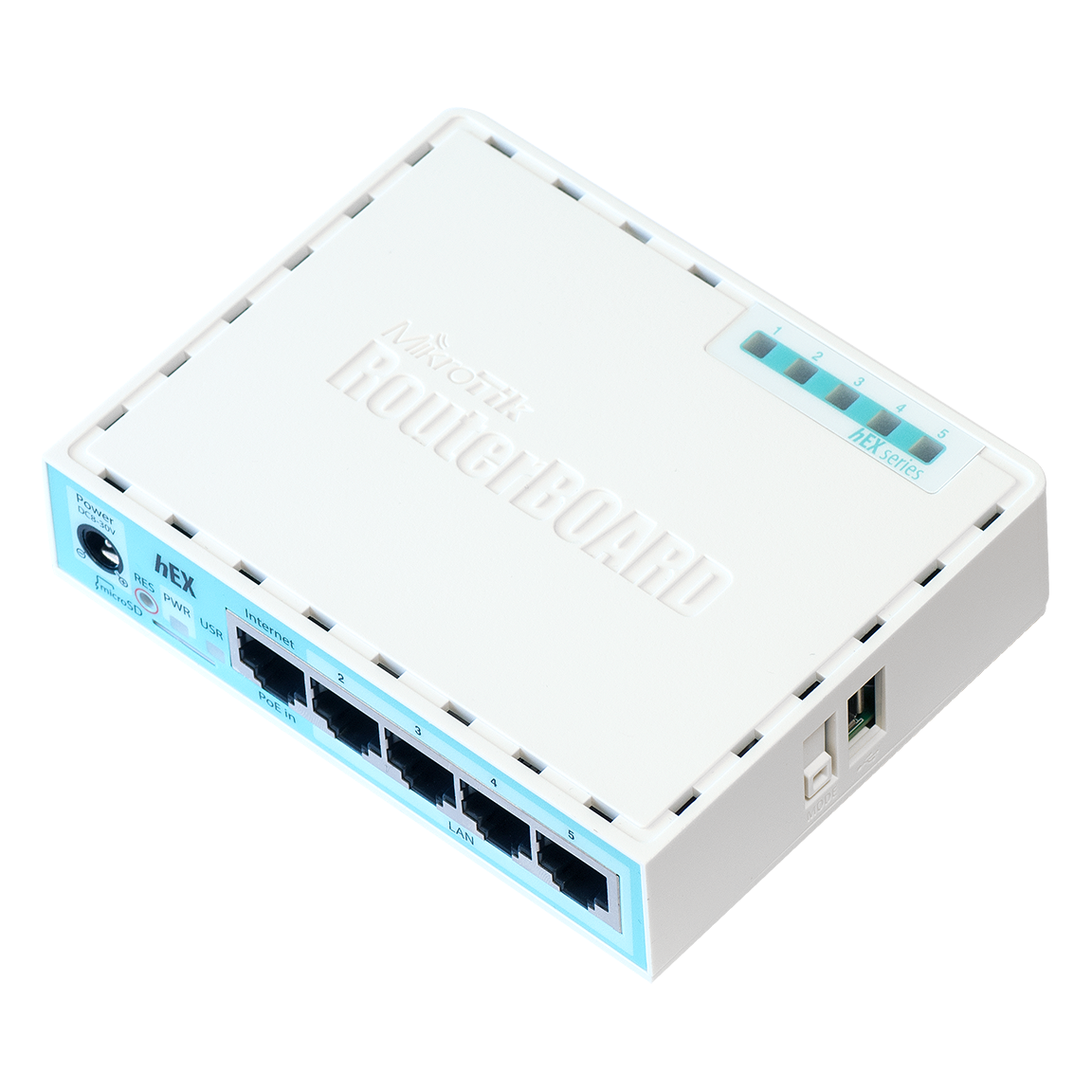

hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This new updated revision of the hEX brings several improvements in performance.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880MHz CPU and 256MB RAM, capable of all the advanced configurations that RouterOS supports.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
|CPU core count||2|
|CPU nominal frequency||880 MHz|
|CPU Threads count||4|
|Size of RAM||256 MB|
|Storage size||16 MB|
|Tested ambient temperature||-40°C to 60°C|
|PoE in||Passive PoE|
|PoE in input Voltage||8-30 V|
|Number of DC inputs||2 (DC jack, PoE-IN)|
|DC jack input Voltage||8-30 V|
|Max power consumption||10 W|
|Max power consumption without attachments||5 W|
|10/100/1000 Ethernet ports||5|
|Memory card type||microSD|
|Number of USB ports||1|
|USB Power Reset||Yes|
|USB slot type||USB type A|
|Max USB current (A)||1|
|PCB temperature monitor||Yes|
Included Adapter 24V 0.38A
