RB1100AHx4

Rp 3.752.000

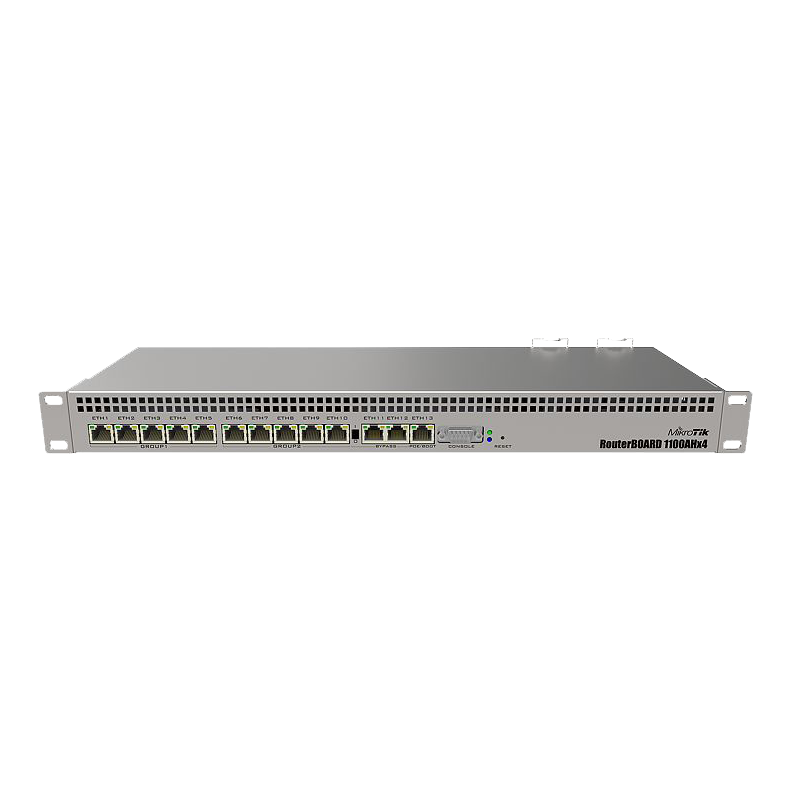

Powerful 1U rackmount router with 13x Gigabit Ethernet ports



Out of stock

Description

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

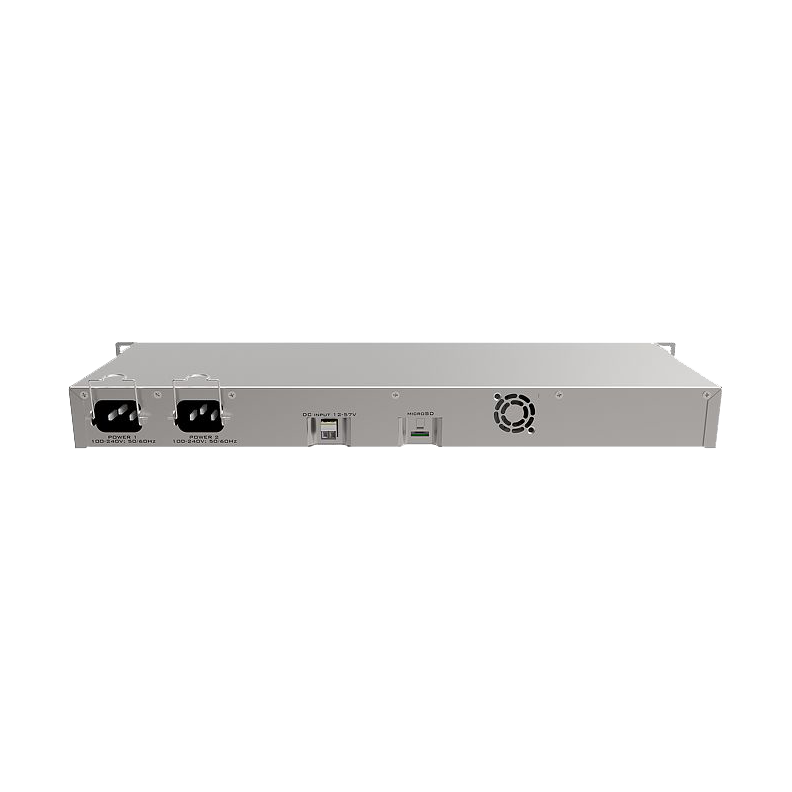

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).



Specifications

Product Code RB1100x4
Architectures ARM 32bit
CPU AL21400-1400-A0-E-1AN-8-C
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 444 x 148 x 47 mm
License level 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND



Powering

Max Power consumption 20W
PoE in 802.3af/at
PoE in input Voltage 20-57 V
Number of AC inputs 2
AC input range 100-240 V
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 12-57 V



Ethernet

10/100/1000 Ethernet ports 13



Peripherals

Serial port RS232



Other

Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
