Description

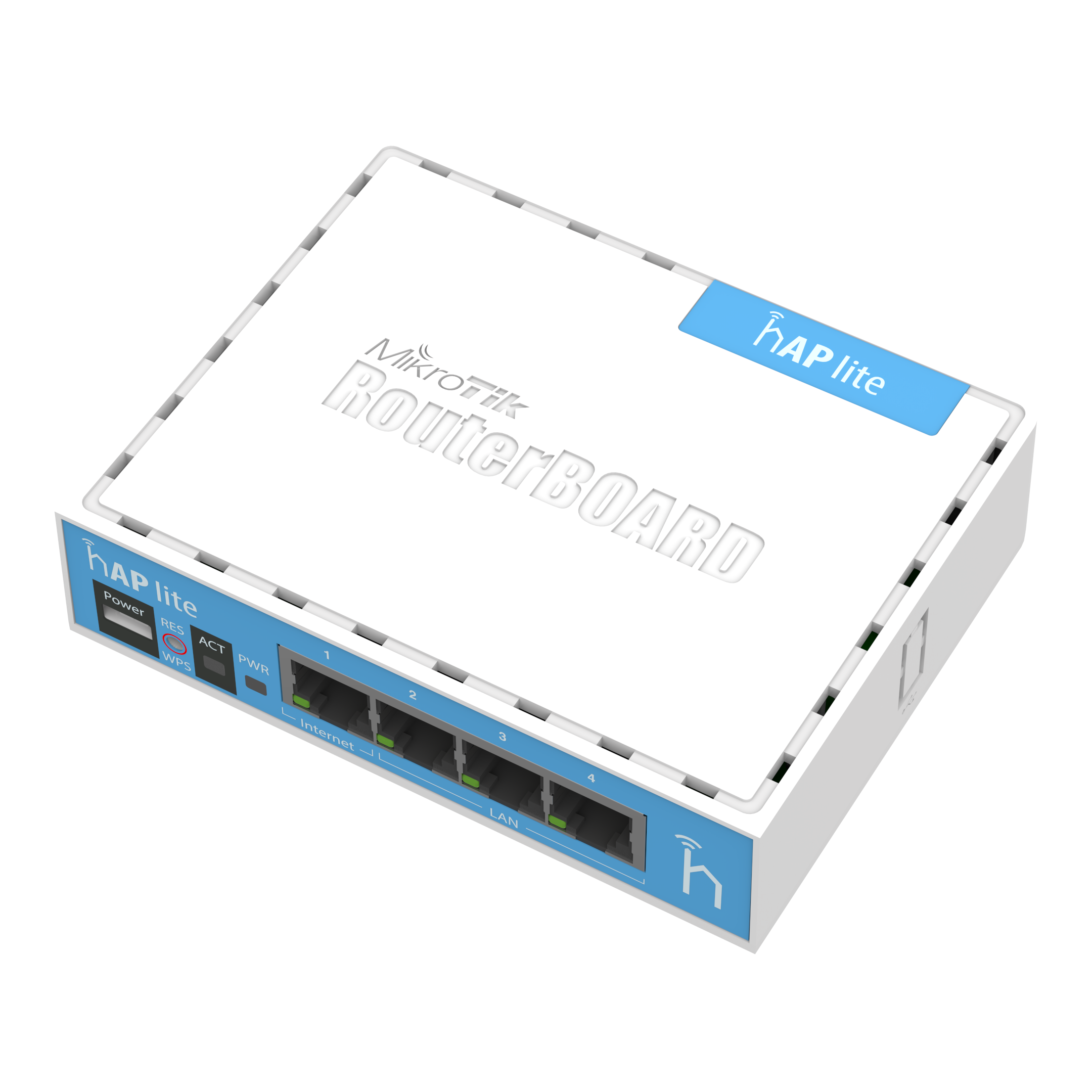

The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.
The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.
Product specifications
Product Code | RB941-2nD |
10/100 Ethernet ports | 4 |
Antenna gain dBi for 2.4 GHz | 1.5 |
CPU | QCA9533 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
License level | 4 |
Max Power consumption | 3.5W |
MicroUSB input Voltage | 5 V |
Number of DC inputs | 1 |
Number of chains | 2 |
Operating System | RouterOS |
Size of RAM | 32 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -20 + 70 C |
Wireless 2.4 GHz chip model | QCA9533 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Wireless specifications
2.4 GHz | Transmit power (dBm) | Receive Sensitivity |
1MBit/s | 22 | -96 |
11MBit/s | 22 | -89 |
6MBit/s | 20 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 20 | -93 |
MCS7 | 16 | -71 |
