Description

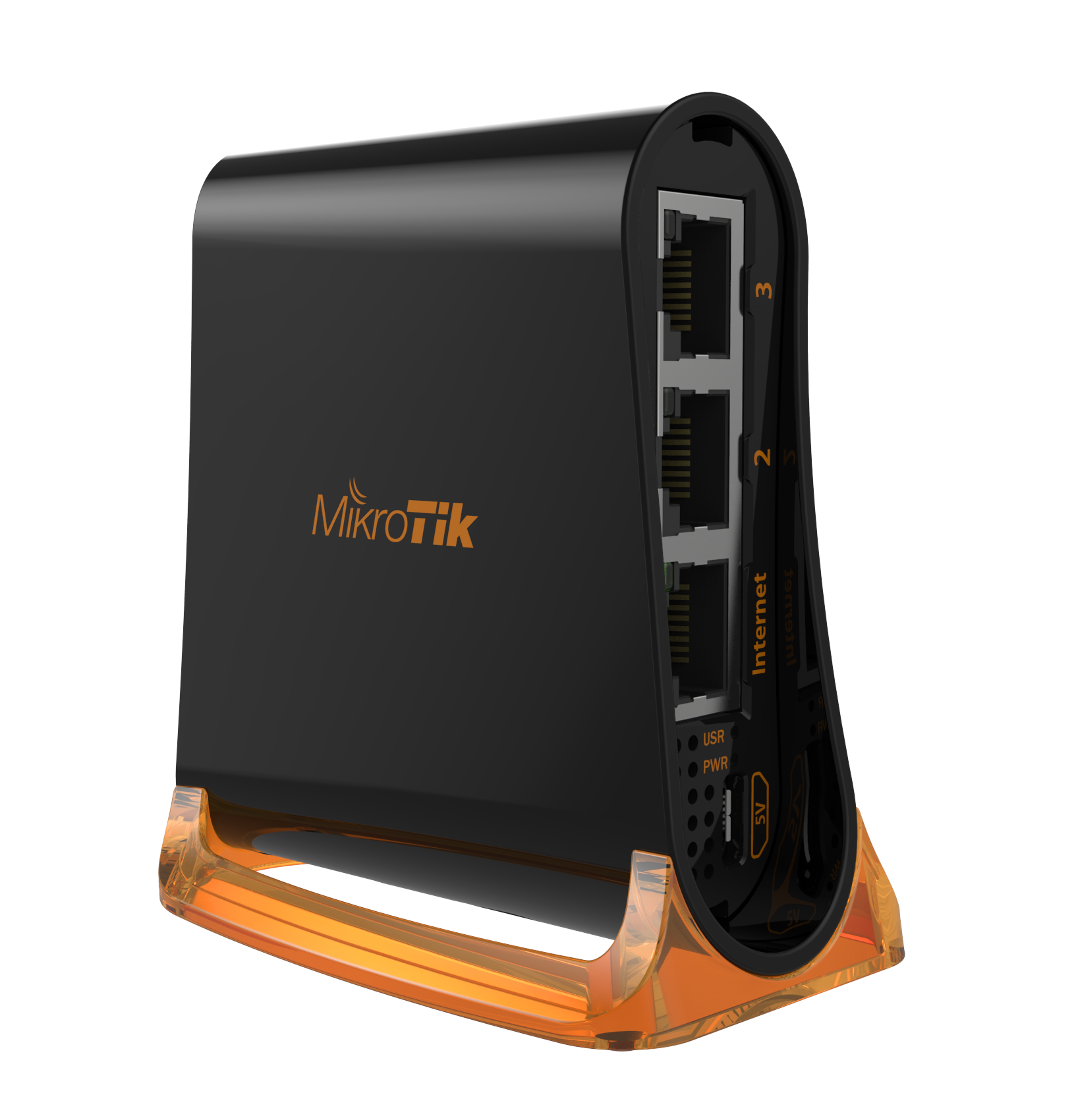

The hAP mini is a small 2GHz wireless access point for home or small offices. It has three ports, which are configured as one Internet port and two LAN ports, but can be reconfigured as desired, using the powerful RouterOS configuration options.
The powerful 650MHz CPU gives you full access to the wide variety of features provided by the versatile RouterOS operating system, but if all you want is a simple access point – it is already configured out of the box. You simply need to open it’s web configuration page and provide a password for it.
Product specifications
| Product Code | RB931-2nD |
| 10/100 Ethernet ports | 3 |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| CPU | QCA9533 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| License level | 4 |
| Max Power consumption | 3.5W |
| MicroUSB input Voltage | 5-5 V |
| Number of DC inputs | 1 |
| Number of chains | 2 |
| Operating System | RouterOS |
| Size of RAM | 32 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20°C to 70°C |
| Wireless 2.4 GHz chip model | QCA9533 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
Wireless specifications
| 2.4 GHz | Transmit power (dBm) | Receive Sensitivity |
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
