Description
New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

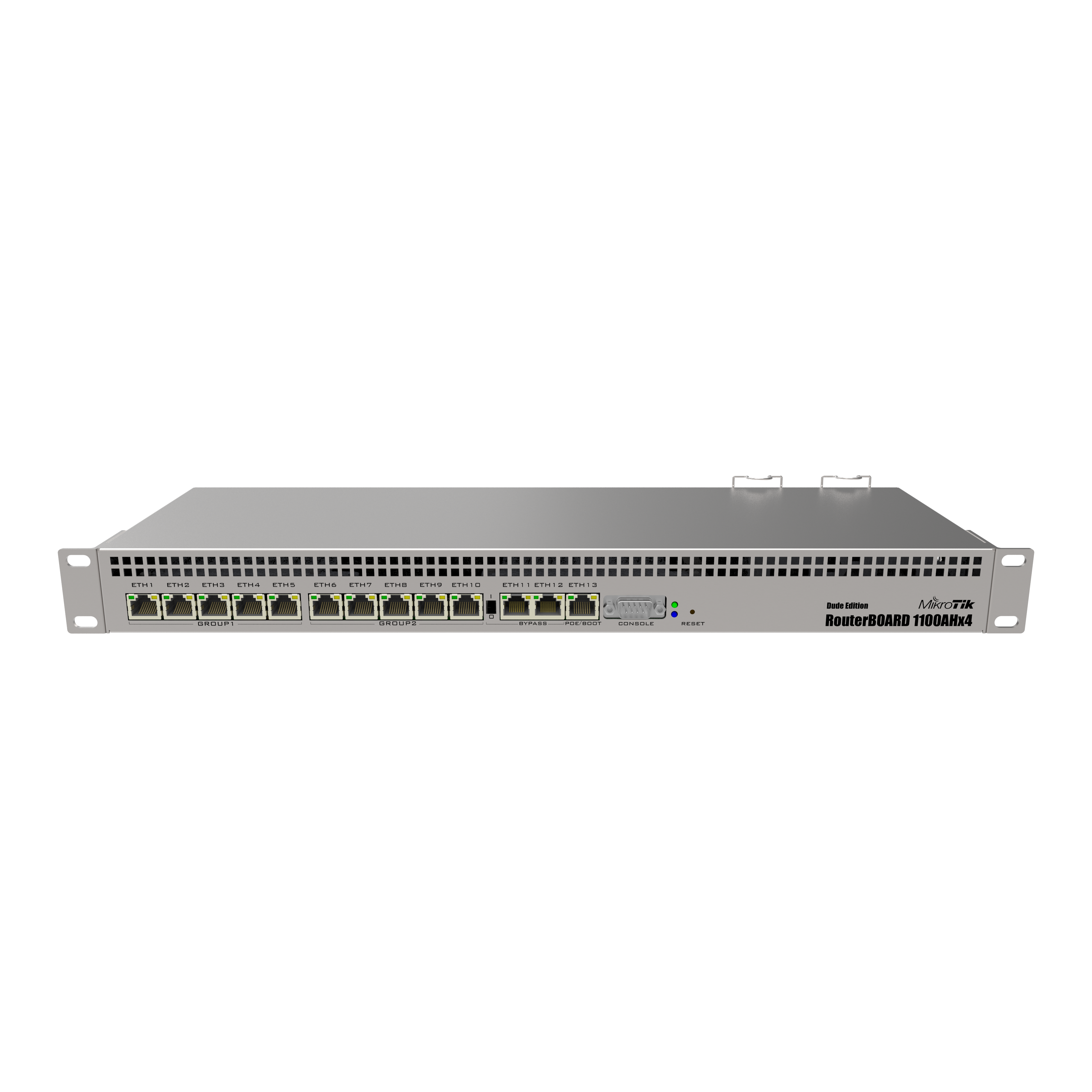

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
Product specifications
| Product Code | RB1100Dx4 |
| 10/100/1000 Ethernet ports | 13 |
| AC input range | 110-240 V |
| CPU | AL21400-1400-A0-E-1AN-8-C |
| CPU Threads count | 4 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Current Monitor | Yes |
| Dimensions | 444 x 148 x 47 mm |
| Extended storage | 60GB M.2 SSD included |
| License level | 6 |
| M.2 slots | 2W |
| Max Power consumption | 25W |
| Number of AC inputs | 2 |
| Number of DC inputs | 2 |
| Operating System | RouterOS |
| PCB temperature monitor | Yes |
| PoE in | 802.3af/at (12-57 V) |
| SATA ports | 2x SATA3 |
| Serial port | RS232 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Voltage Monitor | Yes |
