CCR1036-8G-2S+

Rp 17.316.000

1U rackmount, 8x Gigabit Ethernet, 2xSFP+ cages, LCD 36 cores x 1.2GHz CPU, 4GB RAM, 41.5mpps fastpath, Up to 28Gbit/s throughput, RouterOS L6



Out of stock

Description

Our fastest router has now become even better – the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately). It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance, but now, ten gigabit links are possible.

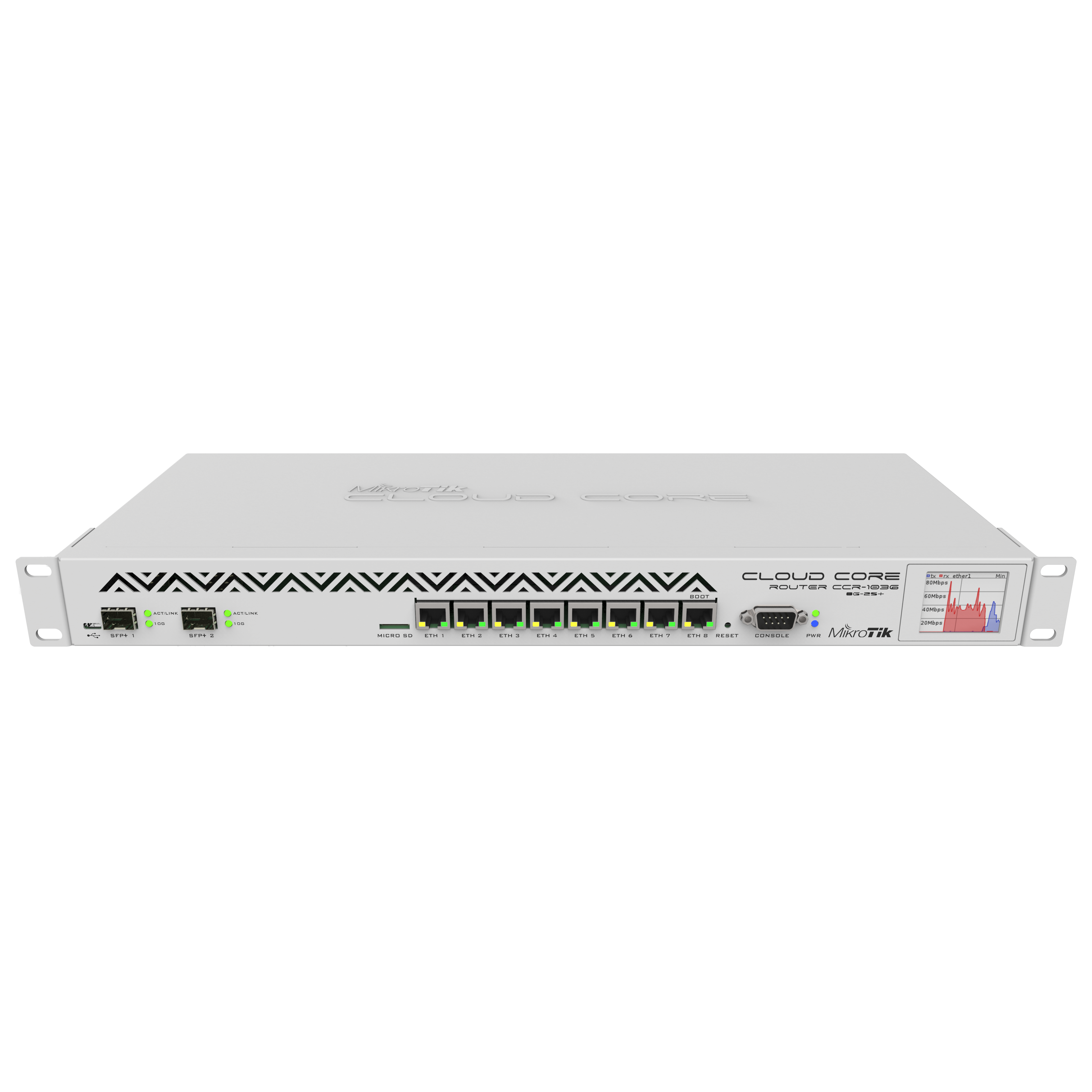

The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports, a serial console cable and a USB port.

The CCR1036-8G-2S+ has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). Also available now, the EM model with 16GB of RAM!

Supports both SFP (1.25G) and SFP+ (10G) modules



Product specifications

Product Code CCR1036-8G-2S+
10/100/1000 Ethernet ports 8
Architecture TILE
CPU TLR4-03680CG-12CE-A3b
CPU core count 36
CPU nominal frequency 1.2 GHz
CPU temperature monitor Yes
Current Monitor Yes
Dimensions 355x145x44mm
License level 6
Max Power consumption 78W
Memory Cards 1
Memory card type microSD
Number of DC inputs 1
Number of USB ports 1
Operating System RouterOS
PCB temperature monitor Yes
SFP DDMI Yes
SFP+ ports 2
Serial port RS232
Size of RAM 4 GB
Storage size 1 GB
Storage type NAND
Tested ambient temperature -20C .. +60C
USB slot type microUSB type AB
Voltage Monitor Yes
