CCR1009-7G-1C-PC

Rp 6.768.000

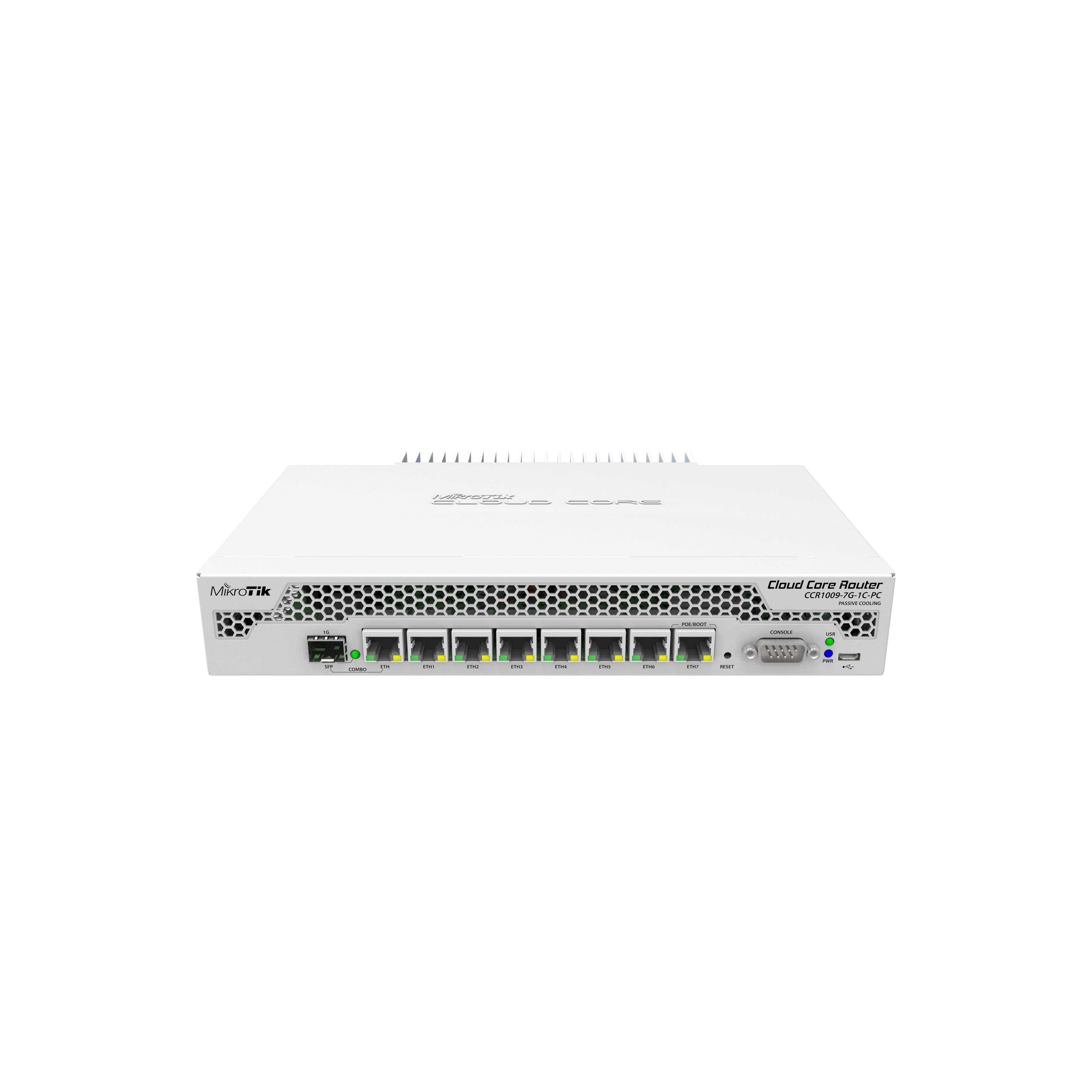

7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 9 cores x 1GHz CPU, 1GB RAM, passive cooling case, RouterOS L6



Out of stock

Description

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

Important changes:

No switch-chip – the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

Combo-port – a single 1Gbit software interface that has two hardware interfaces – an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

100Mbps SFP support – this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput – because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

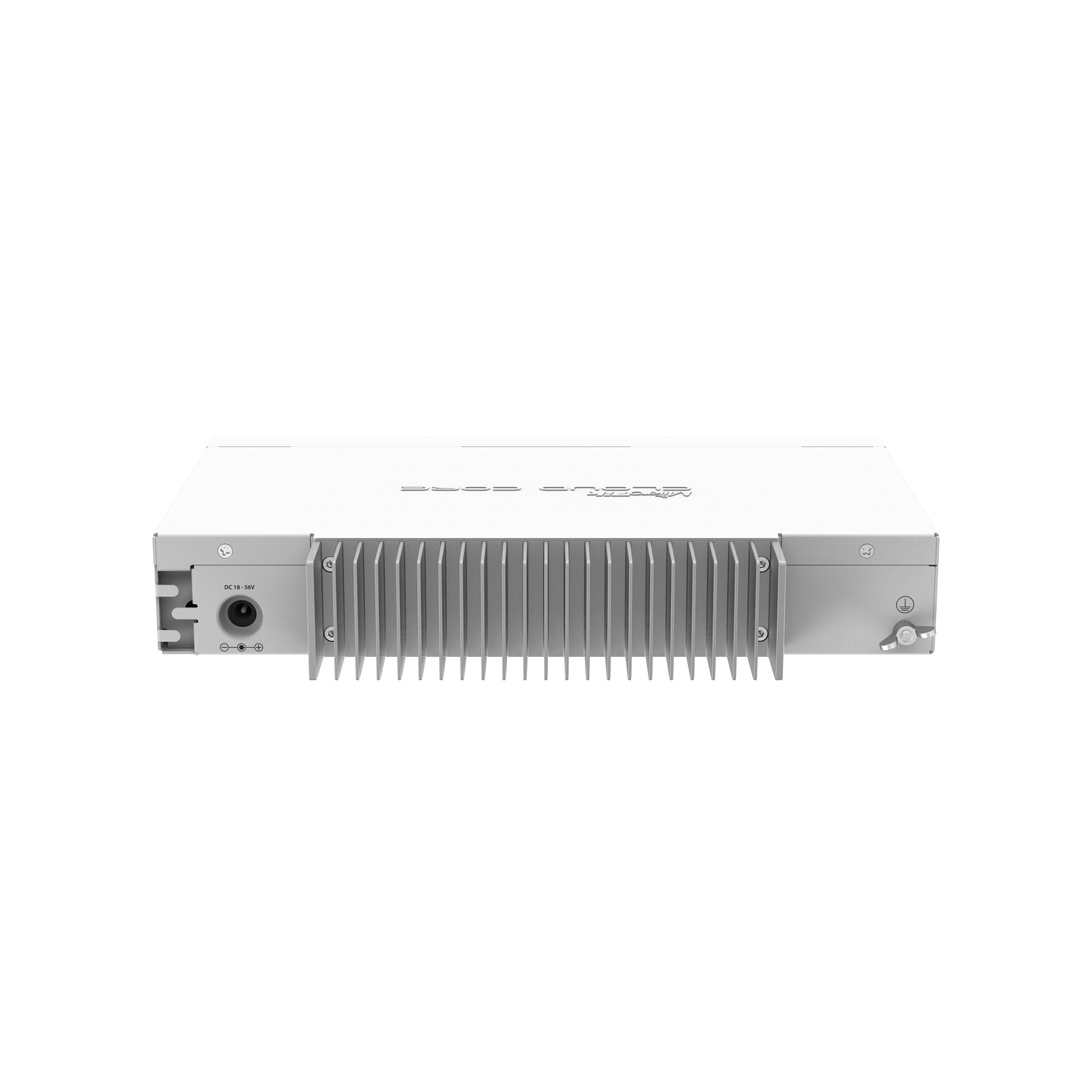

This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.



Product specifications

Product Code CCR1009-7G-1C-PC
10/100/1000 Ethernet ports 7
CPU TLR4-00980CG-10CE-A3a
CPU Threads count 9
CPU core count 9
CPU nominal frequency 1 GHz
CPU temperature monitor Yes
Current Monitor Yes
Dimensions 272x190x47mm
License level 6
M.2 slots 2W
Max Power consumption 25W
Number of DC inputs 1
Number of USB ports 1
Operating System RouterOS
PCB temperature monitor Yes
PoE in Yes
Serial port RS232 + Header
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
USB Power Reset Yes
USB slot type microUSB type AB
Voltage Monitor Yes
