Description

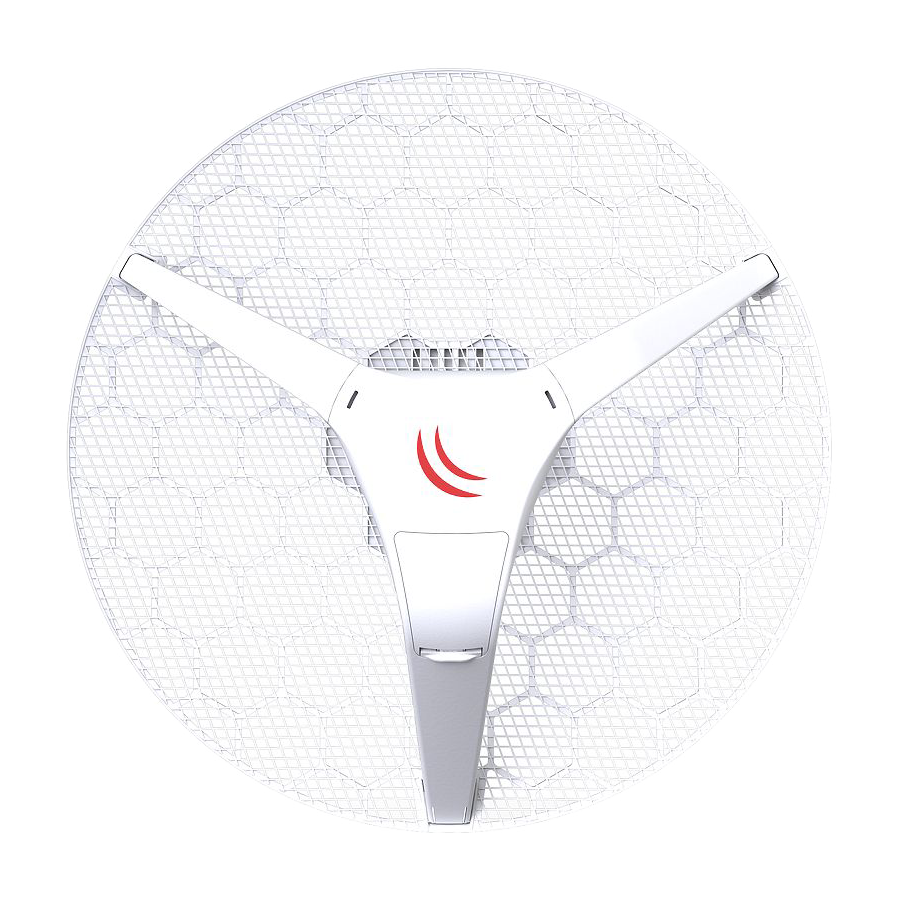

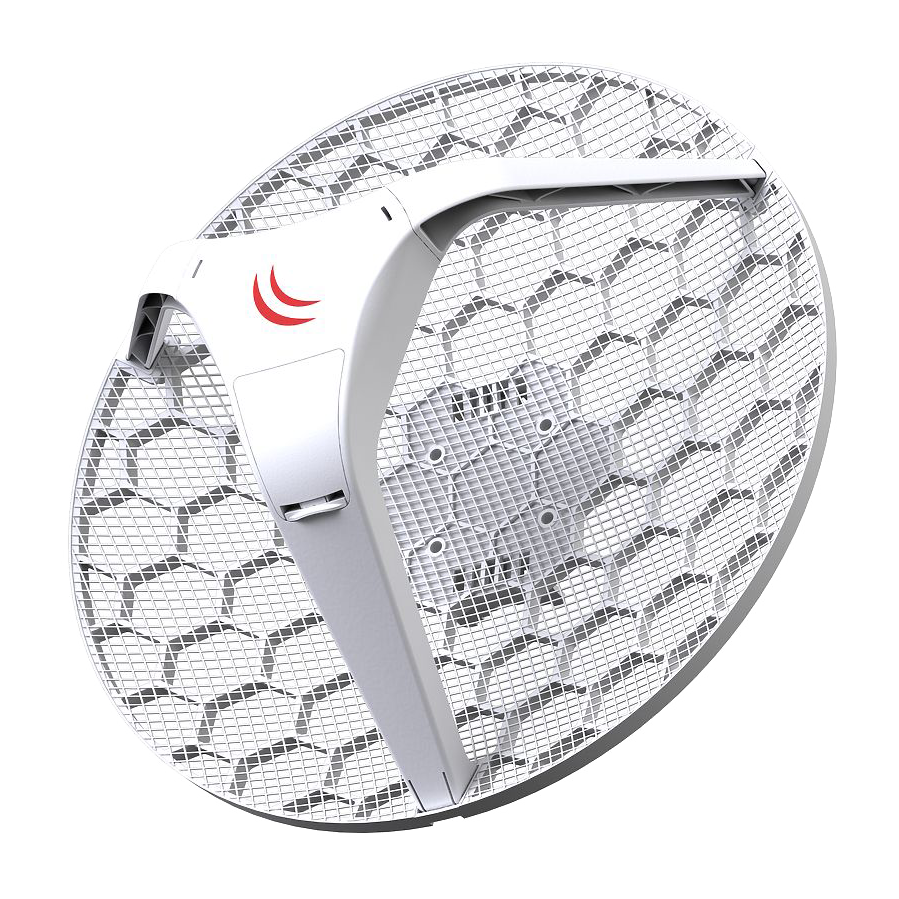

The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
Specifications
| Product Code | RBLHG-5nD |
| Architectures | MIPSBE |
| CPU | AR9344C |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | Ø 391 x 222 mm; package 450 x 450 x 145 mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40 to 70° C |
Powering
| Max Power consumption | 6W |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
| Number of DC inputs | 1 (PoE-IN) |
Wireless
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 24.5 |
| Wireless 5 GHz chip model | AR9344 |
Ethernet
| 10/100 Ethernet ports | 1 |
Wireless specifications
| Serial port | RS232 |
Other
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 25 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 19 | -75 |
