Description

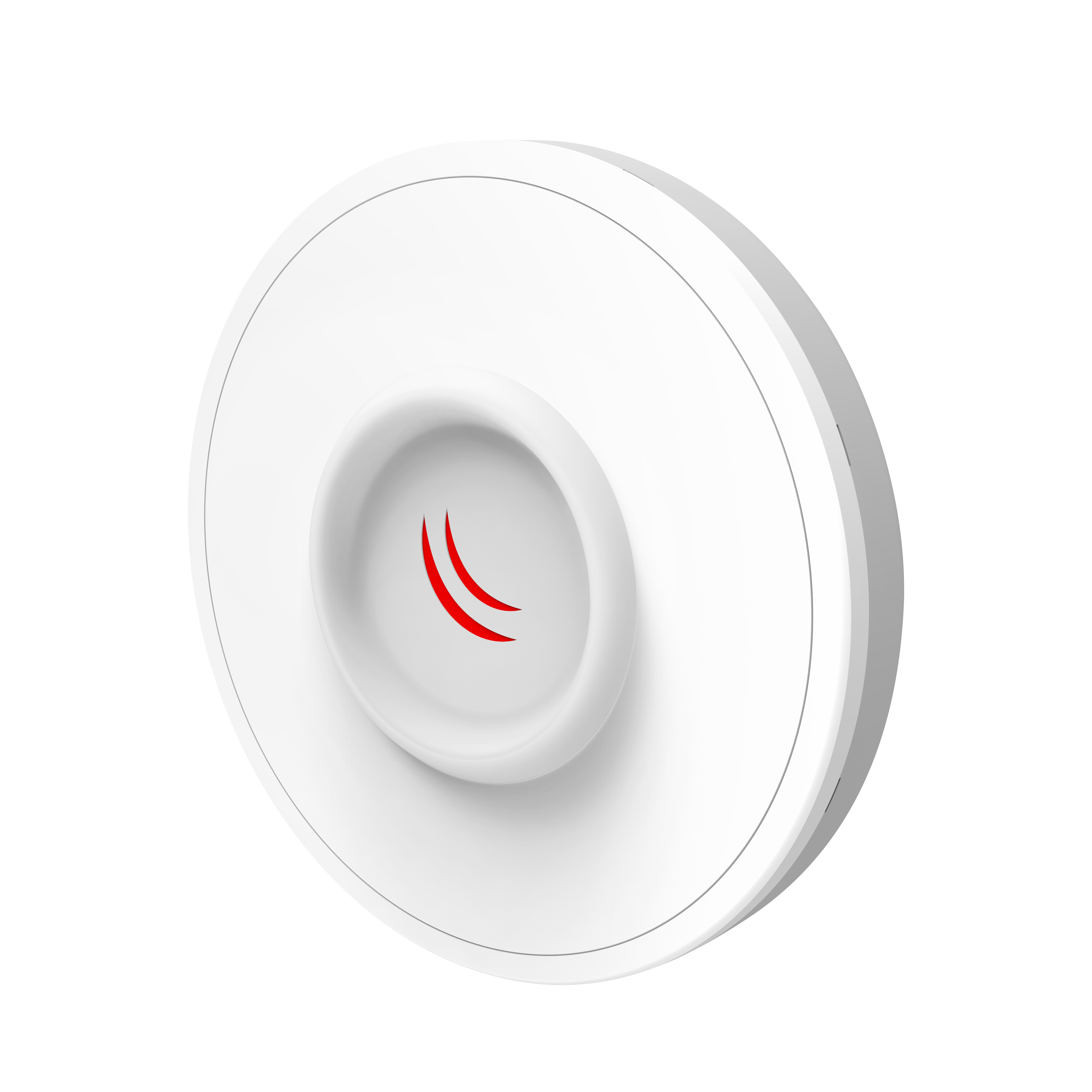

DISC Lite5 is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port and RouterOS L3 installed. The DISC uses a backfire type antenna which allows to reach 21dBi gain in such a low cost and compact package.
The device comes complete with a power supply, PoE injector and mounting kit for a ultra low cost at $48!
The RouterOS Level3 allows to use the DISC Lite5 as CPE or Point-to-Point 5GHz links.
– DISC Lite5 (International) supports 5150MHz-5875MHz range.
Product specifications
Product Code | RBDisc-5nD |
10/100 Ethernet ports | 1 |
Antenna gain dBi for 5 GHz | 21 |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | ⌀ 265mm, height: 80mm |
License level | 3 |
Max Power consumption | 6W |
Number of DC inputs | 1 |
Number of chains | 2 |
Operating System | RouterOS |
PoE in | Passive PoE |
PoE in input Voltage | 10-30 V |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -40°C .. +70°C |
Wireless 5 GHz chip model | AR9344 |
Wireless 5 GHz standards | 802.11a/n |
Wireless specifications
5 GHz | Transmit power (dBm) | Receive Sensitivity |
6MBit/s | 25 | -96 |
54MBit/s | 20 | -80 |
MCS0 | 25 | -96 |
MCS7 | 19 | -75 |
